SEE MORE. DECIDE SMARTER.

ProteQ VISO delivers the synergy of 3D stereo vision and digital imaging in one system.

ProteQ VISO brings the advantages of stereo vision into a digital platform. Inspection benefits from natural depth perception and instant capture or sharing of findings. VISO gives teams the insight and confidence to guide intricate components through assembly, to detect flaws earlier in inspection and provide clearer feedback to suppliers and customers.

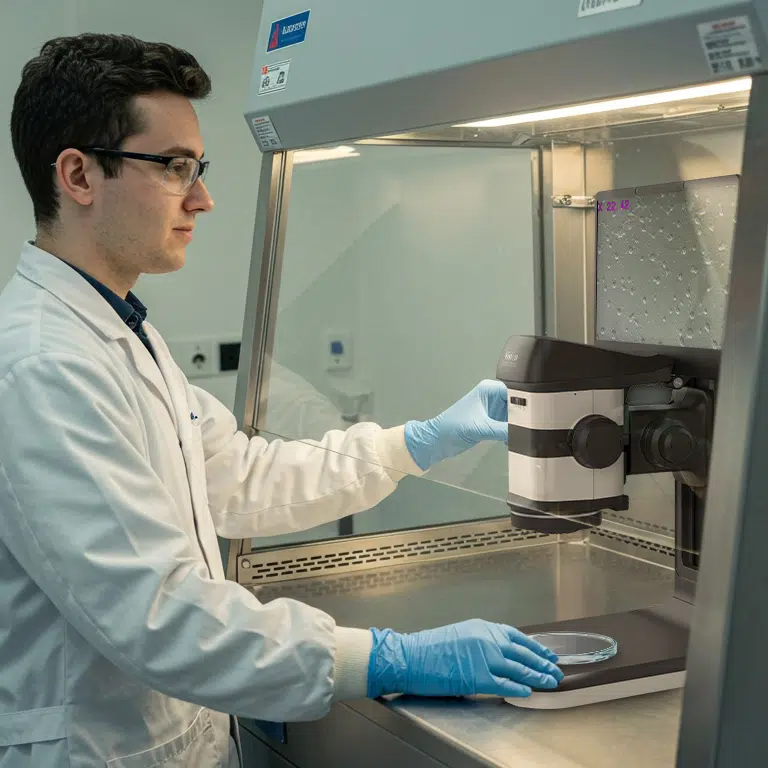

ProteQ VISO 3D digital stereo microscope operated by man in a laminar flow cabinet

3D INSPECTION WITH CONFIDENCE

ProteQ VISO is the 3D stereo inspection platform built for precision, compliance and collaboration.

ProteQ VISO delivers a true 3D stereo image on an auto-stereo display, so depth and form are seen naturally without headsets or glasses. The 2 high-resolution stereo cameras capture detail in Full HD at 60 fps, while the 10:1 zoom enables smooth transitions from assemblies to fine features without losing context.

Built for collaboration

When inspection results need to be shared, VISO makes it simple for teams to see the same detail at the same time. Live streaming, picture-in-picture and headset-free sharing support rapid decisions and effective communication across departments, sites and supply chains.

  • Live 3D streaming for instant feedback and approvals
  • Picture-in-picture for two-way visual interaction
  • Headset-free remote sharing without specialist equipment
  • Multilingual interface for international teams

Ideal for collaboration in contract manufacturing approvals, aerospace and defence supply chains, and design reviews across distributed teams.

Examples of ProteQ VISO in collaboration work environments

3D Viewing in every detail

  • 10:1 zoom range from overview to fine detail
  • Magnification range up to 314x for flexibility across inspection tasks
  • Quick-clip ring light with optimised illumination
  • Optional Oblique and Direct Viewer (ODV) for angled inspection around a point of interest
  • Stand options to suit different workspaces and inspection needs
  • Long standoff distance for safe inspection in laminar flow cabinets
  • Specialty software add-ons for measurement and analysis
  • 18° display tilt – accommodates operators of different height
  • Contrast-enhancing base – improves visibility of fine feature and translucent materials
  • Pilot stage – smooth XY control for precise sample movement

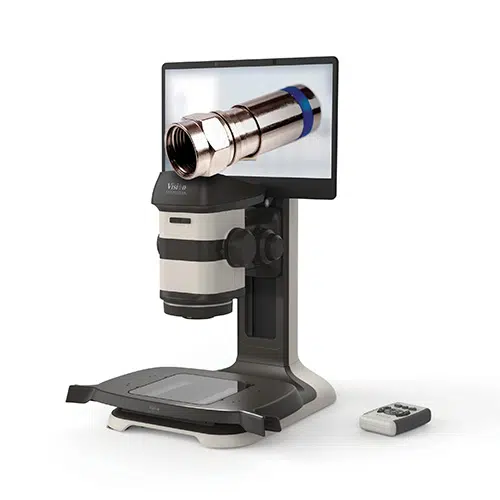

ProteQ VISO 3D digital stereo microscope showing a 3D metal component

3D Image

Sharing & collaboration

7.1x – 314x

Magnification

Glasses Free

3D View

Ergonomics that eases work stress

Extended inspection sessions can cause eye strain, fatigue and poor posture when using conventional microscopes. 3D stereo viewing on an auto-stereo display supports a natural neck position and relaxed posture, making long sessions more comfortable and less fatiguing. The result is greater accuracy, consistency and productivity throughout the day.

  • Glasses-free 3D stereo display reduces eye strain and fatigue
  • Natural neck position supports upright posture and long-term comfort
  • Stereo depth perception improves hand–eye coordination
  • Compatible with safety eyewear and face shields without loss of clarity

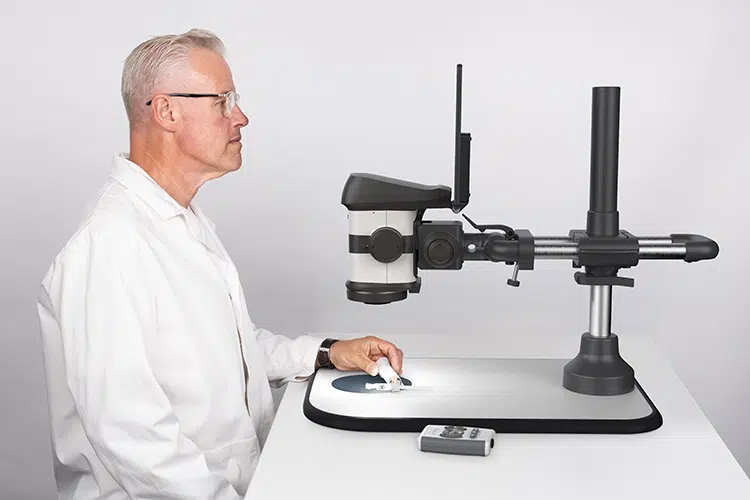

Man viewing a medical device with the ProteQ VISO digital stereo microscope
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider

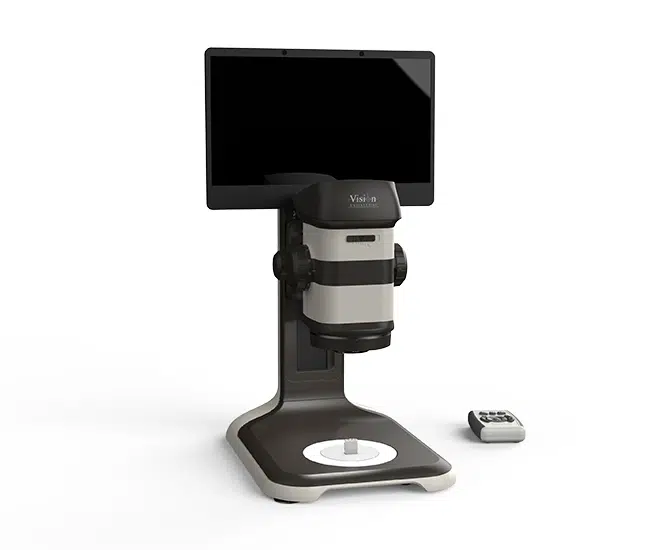

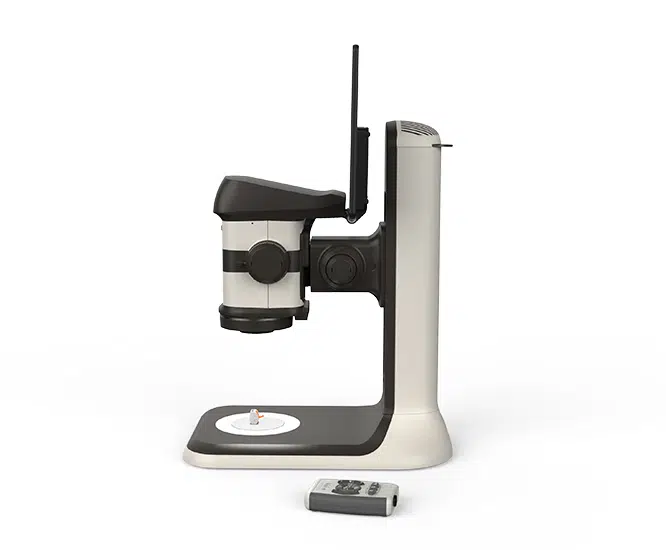

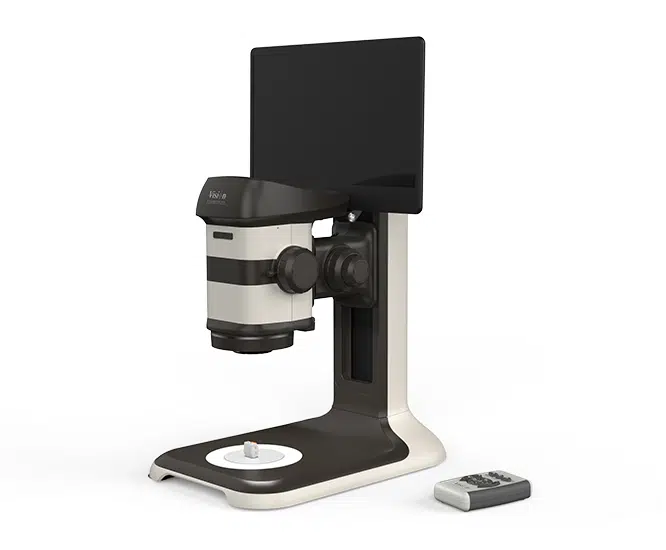

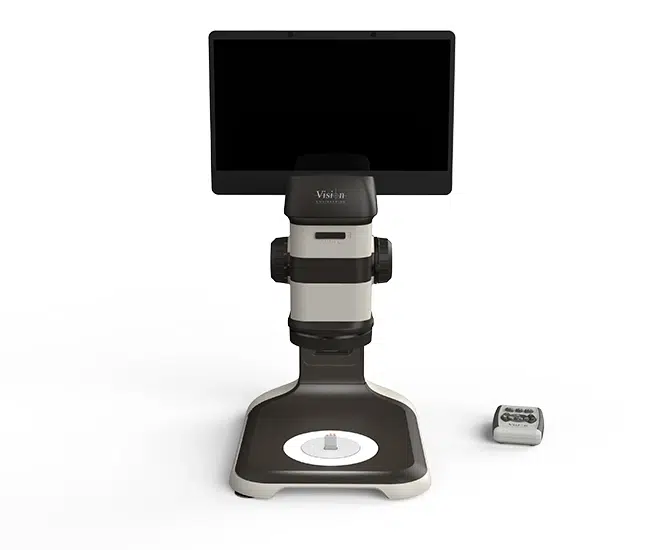

ProteQ VISO

3D Digital Stereo Microscope

Why 3D matters

Human vision is naturally stereoscopic. Defects such as burrs, pits, voids, or raised edges are easier to recognise when you can see their true depth relative to the surface. Shadows and highlights in mono views can be misleading, but 3D stereo provides real form and structure in real time.

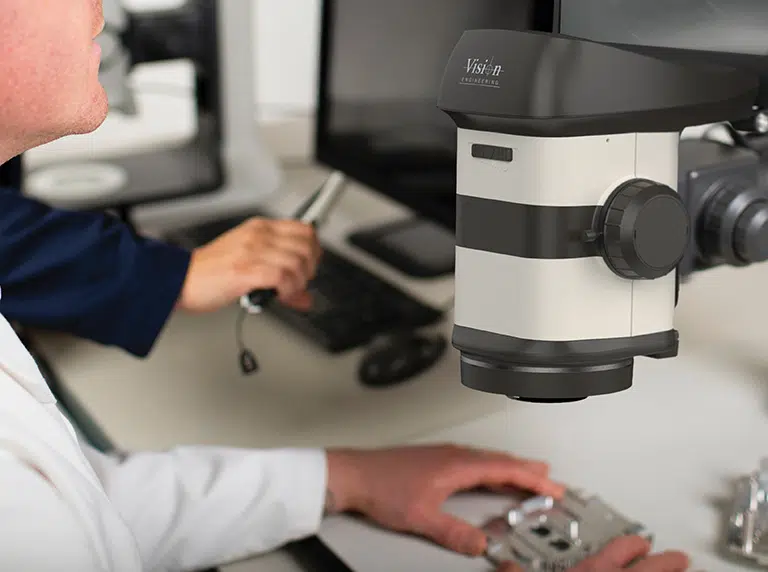

A machined metal part being examined by ProteQ VISO

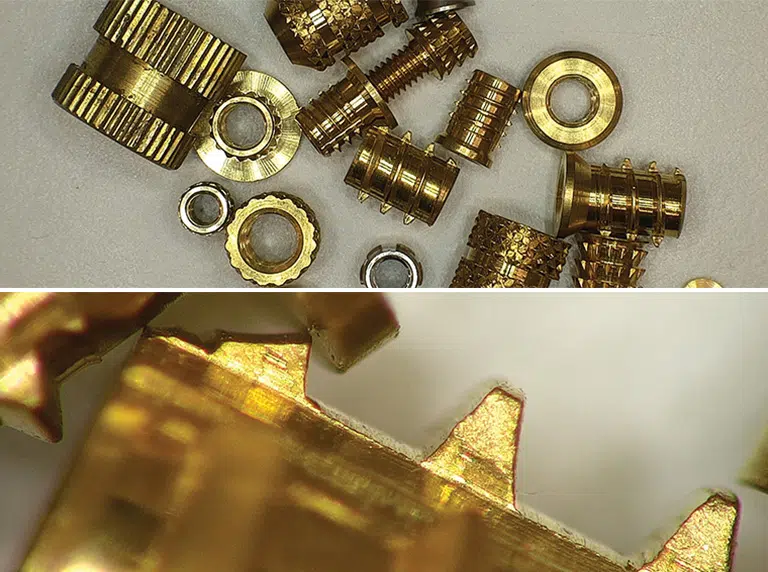

Close up inspection of metalwork examples

Work with precision

3D stereo viewing improves hand–eye coordination for inspection, rework and assembly. Whether soldering microelectronics or polishing fine surfaces, accurate depth perception makes it easier to guide tools in 3D space. The 10:1 zoom makes it possible to move from a wider view of the assembly to a detailed check of small features without changing setup.

Spot errors earlier

Some flaws are only visible when seen in three dimensions. Stereo inspection provides multiple perspectives naturally, reducing the chance of missing anomalies. With the optional Oblique and Direct Viewer (ODV), subjects can be viewed from an oblique angle, making hidden defects easier to detect without repositioning the sample.

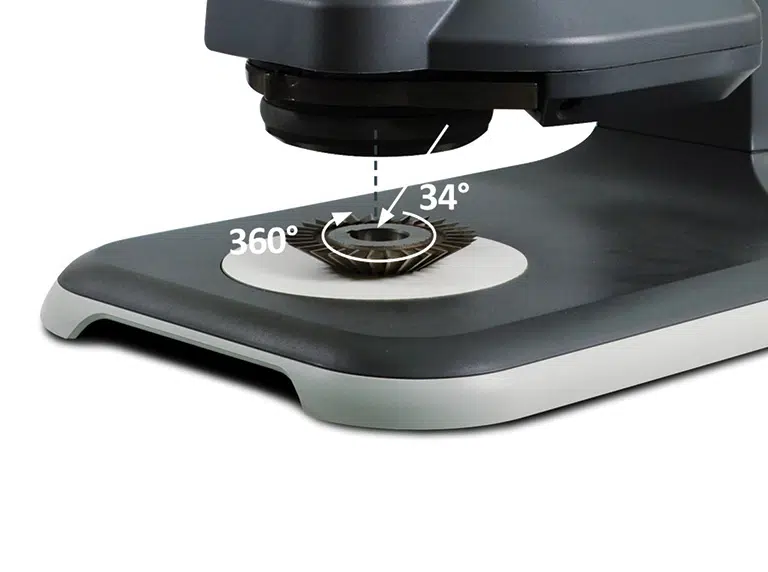

360 degree viewer with a sample metal cog
A photo of 4 people from different working sectors, medical, military, skilled labor and engineering

Confidence in every decision

Together, these features make inspection clearer, faster and easier to interpret. They set the foundation for practical applications where VISO delivers value across industries from electronics to aerospace, biomedical and beyond.

Adapts and enhances

VISO fits into existing inspection processes, enhancing the quality of reporting. Interface options, reporting tools and workflow controls ensure the system is easy to operate, consistent across teams and flexible enough to support regulated environments. It is equally effective for goods-in checks, supplier reporting and in-process inspection, helping identify issues earlier and supporting faster decisions.

  • Kiosk mode provides a locked interface for straightforward, repeatable use
  • PC mode offers advanced system control for extended capability
  • On-screen overlays and annotation simplify supplier and customer reporting
  • Dimensioning and analysis tools integrate inspection data into visual records, audit trails and wider workflows

Ideal for supplier reporting, regulated processes, shared-use labs, training environments, and goods-in inspection.

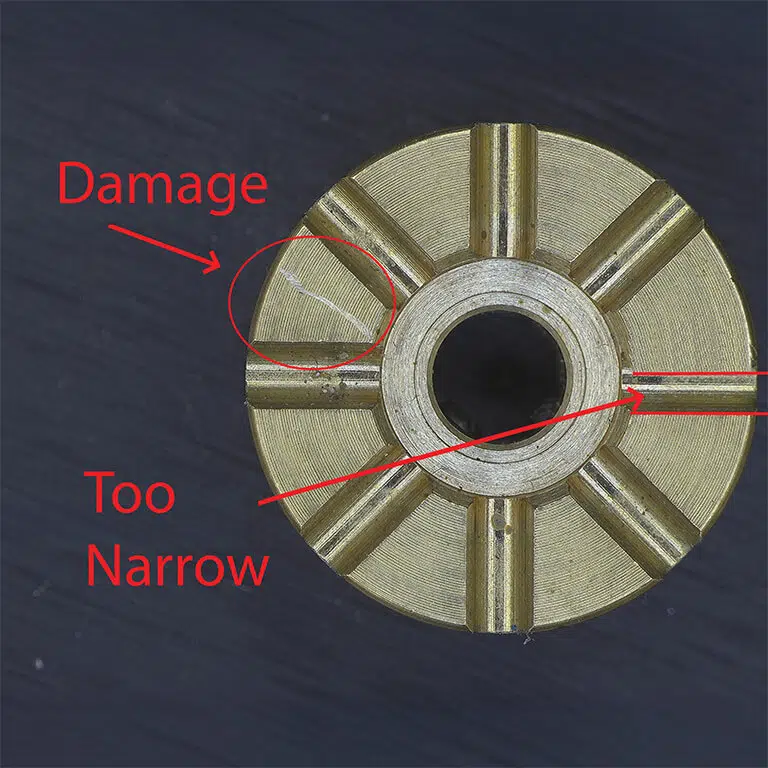

Image of a machined component with signs of damage and compliance issues

Compliance you can count on

In regulated industries, reliable documentation is essential. VISO captures and records inspection sessions in 3D, providing clear, auditable evidence that supports traceability and compliance. Side-by-side comparison tools and 3D playback reduce ambiguity, ensuring that findings are accurate and defensible.

  • Auditable inspection records in 3D (2D if required)
  • Side-by-side comparison with golden samples or reference images
  • Export images, video and data to support audit and traceability
  • 3D playback to review form and surface detail, resolving ambiguity

Ideal for inspection in medical devices, biomedical applications, aerospace and defence components, and other compliance-critical sectors.

Specifications

Detail Summary
7.1x – 314x Wide range of magnification for flexibility of different industries and applications
Detail Summary
10:1 zoom, with iris control and a user selectable lockable detent position Iris controls the depth of subject that is in focus allowing greater depth to be seen or features to be visually separated from background and other surroundings.
Detent gives one customisable lockable zoom position that can be returned to quickly and easily.
Detail Summary
18-degrees User comfort is increased for users of different heights.
Detail Summary
Screen 3840×2160 pixels Captures and displays images clearly with great level of detail
Camera 2x 1920×1080 pixels @ (60fps) 60FPS displays moving subjects clearly without motion blur
Detail Summary
380 – 800mm(eye to screen) Users can sit comfortably at the workbench or maintain a clear area over a large subject
Detail Summary
3D Image and Video capture and playback Capture and share images and videos with 3D detail. Time and date saved to aid traceability.
Live 3D streaming Share live 3D view between different locations. Remove the need cost and risk of travelling or shipping samples between sites
Overlays On screen overlays of crosshairs, reference marks or golden sample for easier, faster, more accurate working.
Annotation Create and capture annotations as part of inspection reporting for clear reporting from the 3D view
On-board Measurement Integrated dimensioning tools to aid efficient detailed inspection of subjects on one
system.
Kiosk or PC mode Ease of use in simple kiosk mode or full PC mode allowing more complex operation and add on of additional software.
Software add-on Use other software to display, report on and manipulate captured images as required.
Detail Summary
Exposure, and image settings Get the best image for your subject with set of controls to enable optimisation of the image.
Detail Summary
Keypad control with 3x presets Optimise lighting for each subject with range of lighting options and lighting
Save/recall presets Presets make changing to preferred options quick and easy.
Detail Summary
English, French, German, Spanish, Italian, Brazilian
Portuguese, Russian, Chinese, Japanese and Korean.
To allow users easy operation in their preferred language.
Objective lens Magnification range Working distance Min. Horizontal field of view Max. Horizontal field of view
X0.45 7.1x – 70.7x 176mm 4.7mm 47mm
X0.62 9.7x – 97.3x 128mm 3.5mm 35mm
X1.0 15.7x – 157x 75mm 2.2mm 22mm
X1.5 23.5x – 235x 43mm 1.4mm 14mm
X2.0 31.4x – 314x 29mm 1.1mm 11mm

Request pricing or book a demo


    YesNo






    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    FAQs

    What is a 3D digital stereo microscope?

    A 3D digital stereo microscope is a stereo microscope that digitises the image before display, allowing the 3D view to be captured, recalled and shared anywhere. Unlike other conventional stereo microscopes, digital stereo microscopes allow the viewer to be separated from the subject, keeping users and subjects safe. And enabling users to view simultaneously around the world.

    What are the benefits of a 3D digital stereo microscope?

    There are many benefits of a 3D digital stereo microscope. Including the ability to view, capture, recall and share the 3D view. Added to this are the ability to add to the digital view, with overlays and measurements. To help speed processes and gather additional data along with the view.

    What is an auto stereo lenticular display?

    The display tracks the user’s eyes and projects different images representing left and right eye views to each eye. This difference in view means the user perceives what they see as 3D.

    How does the 3D ProteQ VISO work and enable real-time collaboration and secure sharing of live data?

    There are many ways this helps collaboration:

    1) As the left and right eye views are digitised they can be shared with other users, locally via a cabled connection, or globally by streaming the stereo images over the Internet.

    2) For operators collaborating in different time zones the 3D view can be captured and shared, by email or similar, and reviewed in 3D stereo anywhere.

    3) capturing and recalling the 3D stills and video also helps with training and accurate recall of samples and actions.

    Do I need to wear special glasses or a headset to see the 3D image?

    No, you don’t. The ProteQ VISO uses a special auto-stereo display that creates a true 3D image you can see with your naked eyes. This glasses-free approach helps reduce eye strain and fatigue.

    What is the advantage of 3D inspection over a standard 2D microscope?

    3D inspection provides a true understanding of depth and form. This makes it significantly easier to identify physical defects like burrs, pits, and voids, which can be ambiguous or invisible in a flat 2D view. It also dramatically improves hand-eye coordination for delicate tasks like assembly, rework, and soldering.

    How does this microscope improve user comfort during long sessions?

    Unlike traditional microscopes that can cause poor posture, the VISO’s screen-based viewing allows you to maintain a natural, upright neck position. This ergonomic design, combined with the glasses-free 3D display, reduces physical strain and eye fatigue, leading to greater comfort and sustained productivity.

    What is the magnification range of the ProteQ VISO?

    The system offers a flexible magnification range of up to 314x. It features a powerful 10:1 optical zoom, allowing you to smoothly transition from a wide overview of a component to examining its finest details without changing your setup.

    Can I perform measurements with this system?

    Yes. The ProteQ VISO supports specialty software add-ons that provide a suite of dimensioning and analysis tools. These allow you to integrate precise measurement data directly into your visual records and audit trails.

    What is the optional Oblique and Direct Viewer (ODV)?

    The ODV is an accessory that allows for angled inspection around a specific point of interest. It gives you multiple perspectives on a feature without needing to move the subject, which is invaluable for a complete inspection.

    How can I share what I’m seeing with colleagues in another location?

    The VISO is built for collaboration. You can use live 3D streaming to share your view with anyone, anywhere, in real time. The person you are sharing with does not need any specialist equipment to see the stream, making it perfect for rapid approvals from customers or feedback from suppliers.

    Is the ProteQ VISO suitable for regulated industries like medical or aerospace?

    Absolutely. The system is ideal for compliance-critical sectors. It can capture and record inspection sessions in 3D, creating clear and auditable evidence to support traceability. Features like side-by-side comparisons and data export are specifically designed to meet the rigorous documentation demands of regulated environments.

    What is the difference between “Kiosk mode” and “PC mode”?

    Kiosk mode provides a simplified, locked-down interface. It’s designed for straightforward, repeatable tasks to ensure consistency across different users and shifts.

    PC mode offers advanced system control and access to the full range of capabilities, such as analysis tools and reporting functions.

    What’s so good about ProteQ VISO?

    ProteQ VISO can do what no other stereo microscope in the world can do. Having the ability to share the 3D view with multiple users around the world, simultaneously and allow them to annotate and measure is something no other stereo microscope can achieve. Bringing together experts and the visual information to speed accurate decision making.
