Easy to use, dual optical and video measuring system for precision engineering

Swift PRO takes the work out of measuring precision-engineered components and reporting the results. With advanced functionality and the benefits of both video and optical measurement technologies, its exceptional ease of use and industry-standard outputs make it a great choice for all manufacturing environments.

02-Swift-PRO-measuring-microscope-user-AB V19 495

Improved productivity

Because Swift PRO measuring microscopes are so easy to use, they can be operated by anyone from shift workers to advanced users, with minimal training. The exceptional ease of use brings you fast, accurate measurements and a greater return on your investment.

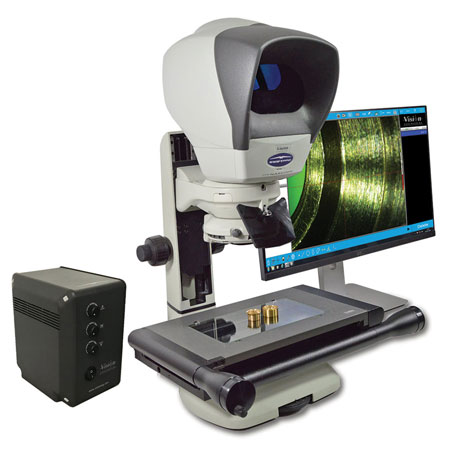

Two metrology devices in one

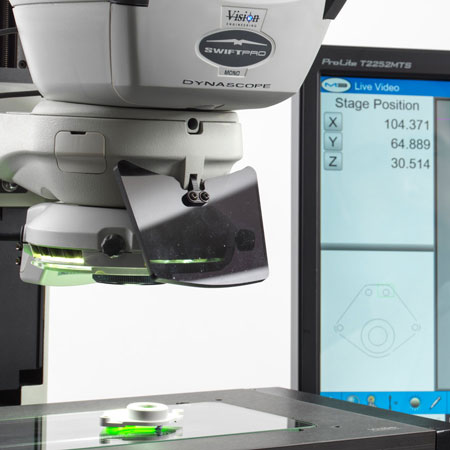

Swift PRO combines two measuring microscopes in a single, robust device, saving space and money.  Use video measuring for bulk and routine work, where the edges of features can be easily identified.  For more challenging subjects, with very low contrast between the feature and the background, switch to optical measurement.  The unique Dynascope  eyepiece-less technology provides high contrast, microscope-resolution images for easy, accurate measuring.

07-Swift_PRO_measuring-microscope-range_300dpi

Digital and Optical

measurements

200 mm x 100 mm

measuring range

10X – 100X

magnification

Cost efficient

Not only does Swift PRO gives you two powerful measurement systems in one compact device, saving you money, but the ability to switch effortlessly between optical and video measurement improves quality control and traceability, with fewer returns and less scrap.

03-Swift-PRO-dynascope-AB-V19-494-crop-900x900

Intuitive metrology software

The advanced functionality of Swift PRO includes our industry-leading M-series metrology software for quick, accurate part inspections, plus CAD-style part view display for easy inspection of the measured data, and more.

Versatile

The dual technology of Swift PRO makes it ideal for a wide range of non-contact measurement of plastic parts, medical devices, PCBs, machined parts for aerospace, automotive and military use, and any other precision engineering environment.

04-Plastic-measurement-DSC_0609-1504x100
07-Swift_PRO_measuring-microscope-range_300dpi

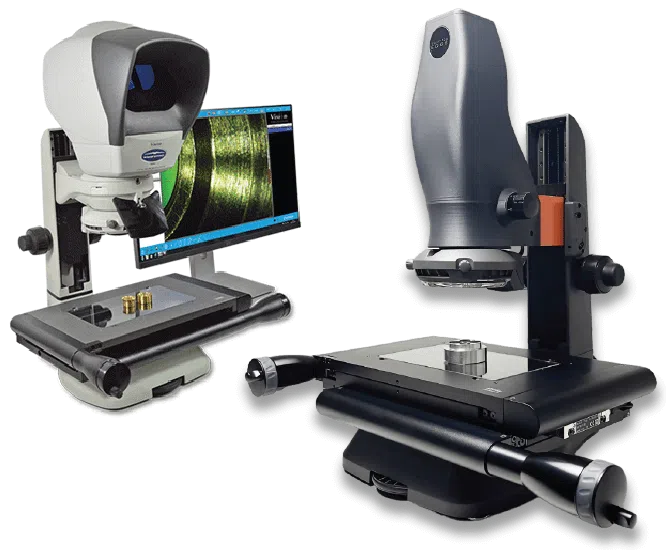

Choosing the model that’s right for you

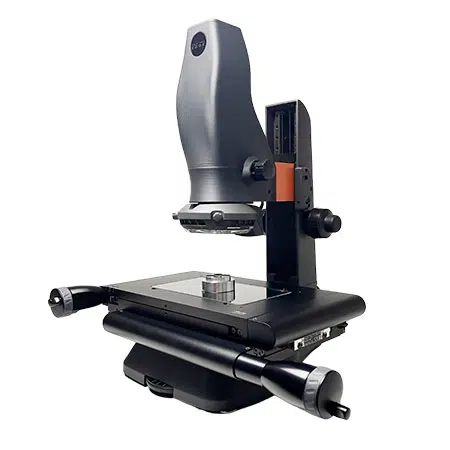

There are three models in the range to choose from.  Swift PRO Duo features both optical and video measurement systems; Swift PRO Cam is our video-only model, and the rugged Swift PRO Elite, which features the Mx200 digital readout, is an excellent replacement for traditional toolmakers’ microscopes.

Technical

Measuring capacity
200 x 100 x 98 (mm)
28 x 4 x 3.9 (inch)
Optics
Easy-fit macro objectives
Swift PRO Duo Swift PRO Cam Swift PRO Elite
2MP colour CMOS No camera – Optical only
Maximum load
12 kg (26 lbs)
Dimensions (W x D x H)
510 mm (max) x 680 mm x 480 mm (35” x 36” x 43.6”)
Measurement Uncertainty (X- Y)
5 + (6.5L/1000) µm *
Measurement accuracy (Z)
10 μm *
Magnification range
10X, 20X, 50X & 100X
Surface (Reflected) illumination
Bright white LED ring light with 4 sectors and diffuser
LED Episcopic illumination (Through the lens – TTL)
Substage (Transmitted) illumination
LED back light, with green filter and iris adjustment
Swift PRO Duo Swift PRO Cam Swift PRO Elite
Fully programmable Manual
Swift PRO Duo Swift PRO Cam Swift PRO Elite
M-Series Software and PC Mx200 Digital Readout

* L = length in mm, using controlled conditions with 100x magnification at the standard measuring plane. Increased accuracies may be obtained over shorter measuring lengths and by in-situ system calibration.

vision
vision
vision
vision
vision
vision
vision
vision

Swift PRO

Easy to use, dual optical and video measuring system for precision engineering

Book a Demo
Request Pricing

Frequently asked questions

Below you can find some of the most common questions.

How can you change magnification on Swift PRO without a zoom lens?2020-06-19T10:33:45+00:00
We supply a range of objective lenses that can be easily fitted to the system for different magnification options. They simply screw on and off.
How often do I need to calibrate the Swift PRO?2020-09-28T15:59:49+00:00

Vision Engineering is certified to ISO 17025, so the measuring systems we supply are calibrated before they leave our premises. The period of calibration depends on the quality systems of each customer, although we recommend calibration/validation every 12 months.

My components have clear edges, so why would I buy a dual system with optical and video together?2020-06-19T10:33:21+00:00
Having both optical and video measurement capabilities in one system means that if your measurement requirements change in the future, you will not need to invest in a new measuring system. This is often the case for contract manufacturers, who manufacture a number of different parts for their customers now and may be asked to manufacture very different parts in the future.
We are not allowed to have PC’s on our shop floor. Can I use the Swift PRO without a PC?2020-06-19T10:32:52+00:00
Yes. Some companies are not allowed to have PC’s or other electronic devices that can be used for sharing data, either for security reasons or due to contamination. Our Swift PRO Elite toolmakers’ microscope comes with the robust Mx200 DRO. You can enjoy using the feature-rich and easy to use M-series software, but will not need a PC to run it.
Which one is better, optical measurement or video?2020-06-19T10:33:32+00:00
The answer to this depends on the application. Video measurement is ideal when measuring profiles or features with clear edges, whereas optical microscopes accurately measure features with low contrast where video cameras wouldn’t be able to detect edges. Both of these methods come together in the Swift PRO, making it the ideal solution for many applications where customers measure a variety of parts on the same system.

For more frequently asked questions please visit the our support page.
