Quick. Easy. Compact.

Compact full HD digital microscope system for quick and accurate inspection right where you need it. High quality custom-made optics and digital features combine for superior performance. Ideal for visual inspection or manufacturing quality control.

man in white coat using VE Cam digital microscope in a laboratory

Start working immediately

Get operational in minutes with this easy-to-use full HD digital microscope, saving time and effort on training your operators.  Teams can work quickly and efficiently inspecting and assessing samples directly on the shop floor, identifying issues in an instant.

Maximise your workspace

Reduce your workstation clutter saving valuable workspace with the compact size of VE Cam. There is no need for a PC, keyboard or mouse, and if you are exceptionally tight on space, you can simply mount a screen onto the unit. With a compact mini monitor, set up has a footprint of just 25 cm x 34 cm.

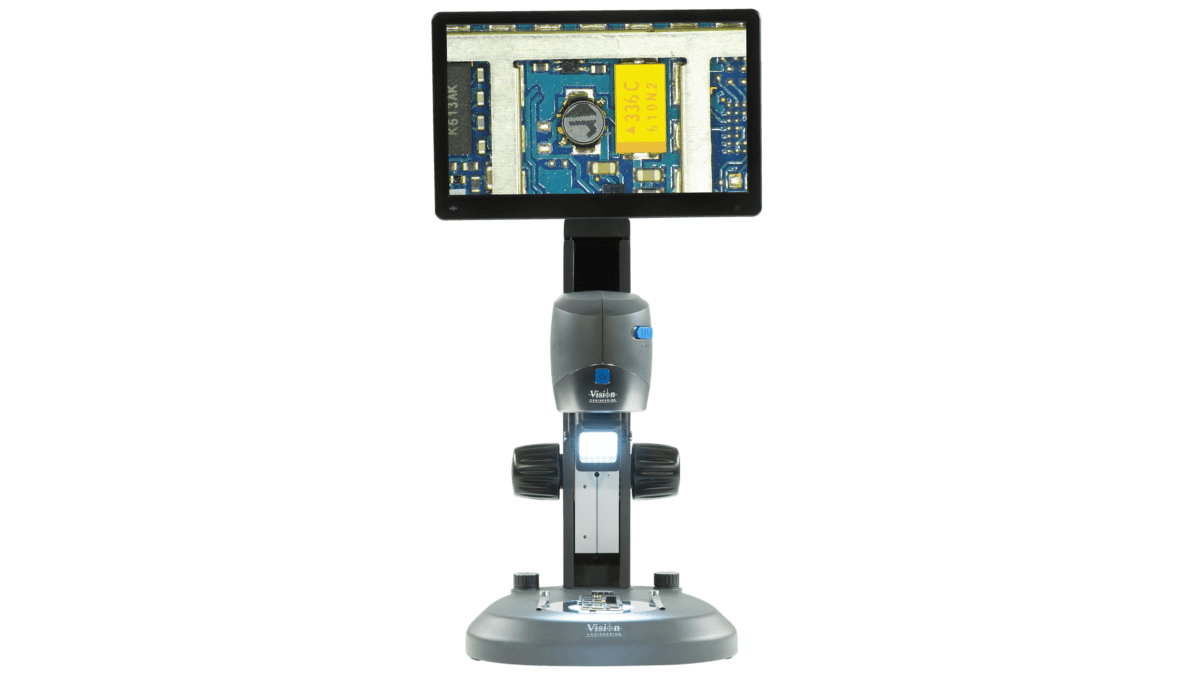

VE Cam compact digital microscope with monitor mounted on bench stand showing pcb

Wi-Fi

Screen sharing

Wide

Field of view

Touch screen

Compatible

Streamline processes

Easily incorporate VE Cam into your shop floor in-line inspection or next to your specific machinery for maximum convenience, reducing the need to transport samples across different workstations.

PCB board inspection under digital microscope

Effortlessly identify faults

VE Cam high quality optics and camera provides great image quality to ensure easy detection of faults.

Improve efficiency

Easily change user presets to allow different operators to work efficiently. 10 user programmable presets enable faster switch over times between inspections of different samples and product lines. Six hotkeys give instant access to the most commonly used presets.

VE Cam digital microscope software showing10 presets
VE Cam digital microscope with wifi screen sharing

Experience Wi-Fi screen sharing

Save time and view operator results wirelessly without interrupting production. VE Cam digital microscope allows flexibility with wireless connections to smart devices and displays with screen mirroring.

Fine tune your image

Find your perfect balance between contrast, brightness and total image size. Use the Iris control to fine control both the depth of focus and the amount and shape of light applied to the sample. This is essential for controlling the contrast at higher magnification levels.

Close up of machined metal component
VE Cam digital microscope touch screen compatible

Easy touch screen operation

On opening, the live customizable on-screen display (OSD) menu offers a range of touch and go features. Pan and zoom around live and saved images or display live grids for alignment and gauging sizes.  Simply point at what you want.

As adaptable as you are

Use as a complete standalone system with on-board touch screens up to 12” with fully flexible tilt and swivel for optimum convenience and ergonomics.

Alternatively use with larger displays or monitors, and connect to PC with a wide range of software options for annotation, measurement and remote camera control.

Control from mouse, touch screen, keyboard, footswitch or keypad.

Digital microscope user on shop floor
VE Cam digital microscope with flexible illumination arms

Integrated illumination control

Adjust lighting levels with the built-in ring light. Integrated controllable 8-point ring light for even illumination across the image area. A range of substage, oblique and other illumination options provides optimised lighting for each application.

Two views at once

Visual aid to simultaneously view two different magnifications at the same time.

PCB inspection with digital microscope showing to magnifications at once
  • Detailed close up of precision metal part
  • electronics PCB under magnification
  • close up of pcb components
  • plastic component under magnification
  • coffee beans

Ideal for multiple applications

Use as a complete standalone inspection microscope for circuit board examination, PCB debug activities or for discovering imperfections or to trace problems in a wide range of industrial applications. Ideal for applications from goods-in quality inspection to shop floor inspection of turned parts.

Technical

Optical data

VE Cam 50 VE Cam 80
Diagonal Field of View 50 mm 80 mm
Max. Field of View (H x V) 40 mm x 30 mm 64 mm x 48 mm
Min. Magnification using 24″ screen 9.97 x 6.23 x
Min. Field of View (H x V) 8 x 6 12.8 x 9.6
Max. Magnification using 24″ screen 49.9 x 31.5 x
Working Distance 163 mm 148 mm

Interface options

VE Cam 50/ VE Cam 80
Mouse USB
Keyboard USB
Touch screen compatible USB
Keypad USB
Footswitch USB
Outputs
Video out HDMI
Image capture format JPEG
USB stick format FAT32
Stand Options

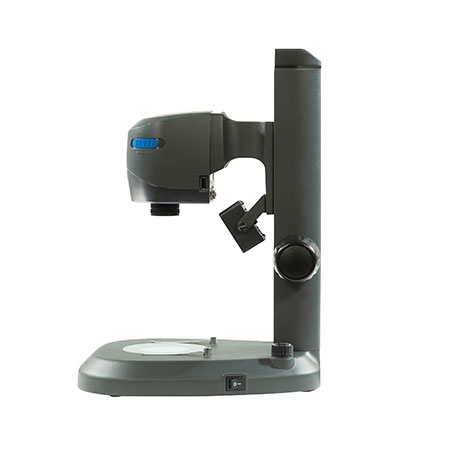

Bench stand
  • Compact, high stability and small footprint.
  • Integrated intensity adjustment for overhead and sub-stage lighting.

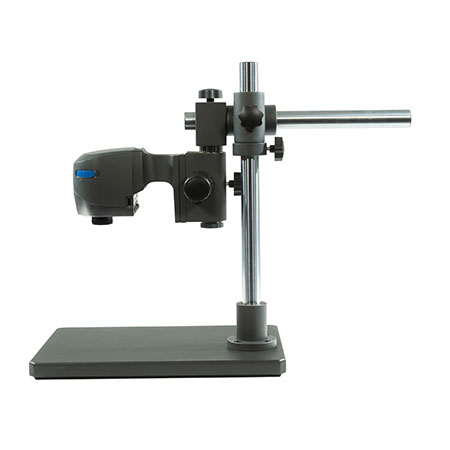

Single arm stand
  • Ideal for larger components.
  • Stable platform with base, or can be attached directly to work surface.
  • Good freedom of movement.

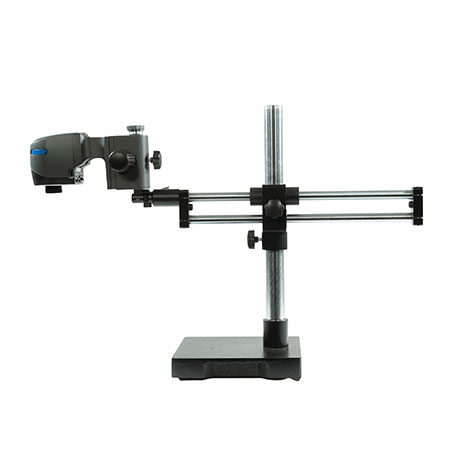

Double arm stand (with base or with clamp)
  • For applications requiring greater reach without compromising stability.
  • Easy adjustment for precise positioning and alignment.

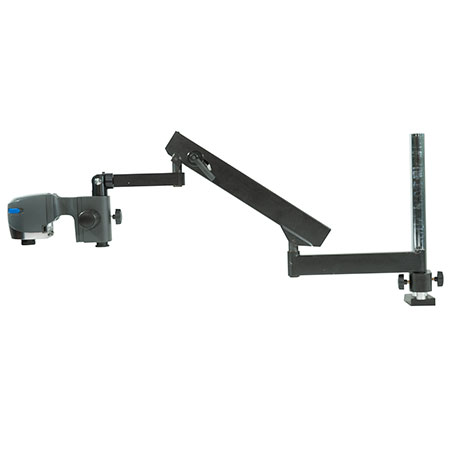

Articulated arm stand
  • Extended reach and ultimate flexibility for precise positioning
  • Keeps work area free
Maximum subject height when mounted to a stand
VE Cam 50 VE Cam 80
Bench stand (S240) 75 90
Single arm boom stand (S206) 119 134
Double arm boom with clamp (S241) 262 277
Double arm boom with base (S242) 407 422
Articulated arm stand (S207) 505 520
Special features
Wi-Fi hotspot – screen mirroring  Yes
On screen quick buttons  Yes
Save images  Yes
Replay saved images  Yes
Pinch zoom (mouse pad /touch screen)  Yes
Pan and zoom of saved images  Yes
Area magnifier  Large and small
Crosshair colours  8
Grids Large and small
Number of presets  10
Exposure options  AE/ ME
White balance options  One button
Image playback  Yes
Menu languages 9
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider

VE Cam

Quick. Easy. Compact.

Book a Demo
Request Pricing

Frequently asked questions

Below you can find some of the most common questions.

How does WiFi screen mirroring work?2021-11-10T10:20:43+00:00

The VE Cam generates a WiFi hotspot that can be accessed by WiFi enabled devices to view the live image from the camera.

Can I use a wireless mouse to control VE Cam?2021-11-10T10:22:00+00:00

Yes. The combination of Wireless mouse and WiFi screen mirroring means that once setup VE Cam can be controlled and viewed with no physical connection.

Can WiFi be turned off?2021-11-10T10:23:06+00:00

Yes.

Can I really display two magnifications on one screen?2021-11-10T10:24:29+00:00

Yes, the ‘area magnifier’ feature will allow two magnification areas to be viewed at one time.

How can I control VE Cam if my hands are busy manipulating subjects?2021-11-10T10:25:59+00:00

The handy programmable footswitch means that the favourite 3 of 12 selectable features can be  access without need of hands.

For more frequently asked questions please visit the our support page.

Ask us a question
VE Cam 50 digital microscope next to monitor showing electronics board

VE Cam 50

When greater magnification is required up to 50x. Good for at line, in workshop, in cleanroom visual inspection.

VE Cam 80 digital microscope

VE Cam 80

Offering a larger field of view (80 mm). Good for big view of subject, finger press operation​.
