THE stereo microscope for performance

Mantis is an award-winning ergonomic stereo microscope which offers exceptional operator comfort and superb 3D imaging. No awkward eyepieces means a stress-free viewing experience, see more and do more than is possible with conventional binocular microscopes.

20% OFF ALL MANTIS PRODUCTS!

LIMITED TIME OFFER
Experience the award-winning Mantis ergonomic stereo microscope, now 20% off! Enjoy eyepiece-less viewing and superb 3D image quality for a wide range of applications.

See every detail, even with demanding subjects

See the finest detail in a large, high resolution, high contrast, optical stereo image.

Whether you are viewing your subject in the eyepiece-less viewer or a separate monitor, Mantis stereo microscope delivers the superior image quality you need to perform your inspection tasks accurately and quickly.

Work better for longer

Mantis’ superior microscope ergonomics allows higher levels of concentration and lowers fatigue to give you better performance. It enables relaxed, stress-free viewing and the eyepiece-less design reduces eye activity, and thus eye strain.

Manipulate your subject easily with long working distance, accurate 3D view, and quick magnification change.

Mantis 3rd Gen stereo microscope family, PIXO, ERGO and IOTA

3 – 15x

Magnification

Ergonomic

Working

Digital

Image Capture

icons: 5MP image quality, long working distance, ergonomic position
Mantis microscope features icons set 2
Mantis microscope features icons set 3

THE stereo microscope for image quality

Mantis stereo microscopes deliver an unrivalled high quality 3D image, rich in detail and contrast, perfect for 3D observations and manipulation of a wide range of subjects.

man and woman using Mantis stereomicroscopes

Eyepiece-less design

Mantis eyepiece-less technology projects a large high quality 3D image directly to your eye, making it easier to see and more comfortable to view than a binocular stereo microscopes.

The clarity of the 3D image supports enhanced hand-eye coordination, making subject manipulation with tools more accurate, faster and more efficient.

You can even wear corrective or protective eyewear without loss in performance.

Dynamic View Optics (DVO)

Mantis’ unique Dynamic View Optics enables a stereo view, which changes as you move your head. See the sides of a subject as well as the top to gain a greater level of information and understanding.

Operators range of head movement using Mantis stereo microscope
Mantis PIXO stereo microscope displaying catheter on monitor

High performance digital imaging

Use Mantis PIXO’s integrated high quality microscope camera to share your image to a screen. Capture, review, analyse and share high quality images, including annotations, in real time, to improve reporting and communication.

Maximise working effectiveness by adding digital overlays to compare live images with targets, measures or pre-set guides.

Range of optical lens

To ensure you get the highest image quality, each dedicated lens combines the finest optical quality glass and special coatings to give a high resolution, high contrast view. For the most demanding subjects there are is a range of Super Long Working Distance (SLWD) objective lenses.

Mantis stereo microscope objective lenses

THE stereo microscope for ergonomics

Mantis’ unique package of ergonomics benefits the user in four key ways, enabling comfortable, accurate working for longer. Postural benefits  combined with greater eye comfort, ease of use and the perfect stereo view means operators’ output quality and productivity are maximised.

Close up of component bore hole

Maximum eye comfort

Mantis extended pupil eyepiece-less technology increases your eye comfort. The distance from Mantis to the eye, allows access to ambient light, reducing iris activity when working. Common focus distance reduces refocusing effort while working with the system.

You can wear corrective or protective eye glasses with no loss of performance.

Greater separation from the system to your eye reduces the risk of cross contamination and eye infection, so Mantis microscopes can be shared between multiple operators more safely, reducing operator risk.

Postural comfort

Mantis’ extended pupil eyepiece-less technology increases your postural comfort by projecting the image into the eye at a comfortable viewing angle with a neutral neck position. Your head is not required to be in a tightly fixed position, so you have a more natural ability to move while working. There is no need to lean uncomfortably over constraining eyepieces.

Mantis stereo microscope user in ergonomic working position
hand soldering PCB under Mantis stereo microscope

Hand-eye coordination

The distinctive stereo view of Mantis gives you both a direct view of the subject and allows peripheral vision. This enhanced view helps you to understand the shape and form of the subject, and also the position of the tools you are using to work on the sample.

Sample manipulation using tools can be carried out with higher levels of accuracy and confidence.

Ease of Use

Mantis has few, simple to operate controls to ensure that every user quickly and effectively becomes confident with the instrument. Rotating the multi-view turret allows three different magnifications of your subject with a simple operation without changing view.

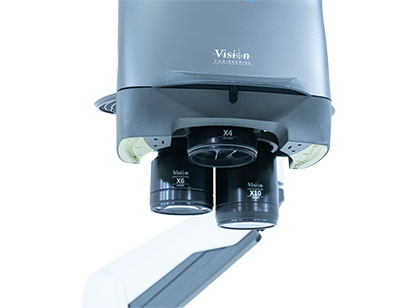

close up of Mantis stereo microscope rotating turret

THE stereo microscope for 5 way illumination

Mantis features 5 different illumination modes, giving you maximum control over lighting your subject. This ensures you achieve the best possible shadow free illumination of your sample for the best quality inspection and manipulation.

  • 3d Illumination left with insert of Mantis microscope
  • 3D illumination right with insert of Mantis microscope
  • 3D illumination both right and left with insert of Mantis microscope

Dynamic 3D illumination

Control and enhance 3D illumination for even greater understanding of 3D subjects. ​Two banks of LEDs can be set for synchronised or independent control to give you the option to add shadow detail, enhancing your 3D understanding of the subject. Additionally it helps prevent unwanted reflections, which can hide subject detail.

Sub-stage, transmitted, diascopic illumination

Transparent, translucent and perforated subjects are best illuminated from below. The Mantis’ Stabila stand with built in sub-stage illuminator is an effective solution to your transmitted lighting requirements.

sample under sub stage illumination
Bore hole inspection with Mantis microscope episcopic illuminator

Incident, episcopic illumination

Sometimes it is necessary to view down a blind hole. Get light along the optical path between close packed components or to the bottom of a bore for inspection tasks with Mantis’ episcopic illuminator.

Combined White / UV illumination

Change from white to UV light at the push of a button for inspection of coatings and fluorescing agents. Speed up inspection of coated parts by viewing the coating, and then through the coating as you quickly change from one light to the other.

PCB under UV lighting
Pseudo dark-field illumination of low contrast translucent sample

​Contrast enhancing, pseudo dark-field illumination

Low contrast subjects such as plastics, glass and biological and other transparent/translucent samples benefit with optional contrast enhancing base.

THE stereo microscope for a range of applications

Long working distance and excellent depth perception makes Mantis stereo microscope perfect for multiple applications including; electronics, medical device manufacture, precision engineering, life science, and many more.

Improved hand-eye coordination and lower operator fatigue makes tasks such as soldering, PCB inspection and rework easy, especially for extended periods.

SMT pink PCB

Mantis’ clear stereo view and low operator fatigue make it perfect for precision engineering  inspection tasks such as component finishing, anodising or hardening defect detection, and tasks which need the use of tools, such as deburring.

precision engineered metal cogs

Bright imaging and ease of use makes Mantis a great choice for the inspection of stents, catheters and other medical products.

medical catheters and syringes

Mantis makes the quality control of rubber seals and plastic components – and inspection and rework, such as the removal of flash and other injection moulding defects – easier and quicker.

plastic and rubber components

Depth perception and hand-eye coordination make Mantis ideal for watch and jewellery making. Assembly and finishing of the smallest movements or the setting of stones is done with confidence and precision.

precision watch mechanism components

High-concentration applications, which require long periods of intense focused working, such as sample preparation, dissection and manipulation can performed in comfort. Safety glasses can be worn, and Mantis stereo microscope can be used effectively in a laminar flow cabinet.

cells magnified using microscope

Mantis is a good choice for precision work such as tailoring dental prosthetics which requires magnification for inspecting the moles, for rework and colour-matching the final product.

Hand tool working on dental mould

Mantis is ideal for working with UV fluorescing subjects. Coatings, dyes, masking and other subjects can be viewed with white light or excited with UV illumination to fluoresce and viewed easily by the user.

UV illumination of PCB surface mount component

Technical

Mantis PIXO & Mantis ERGO

Objective Lens Working Distance Max. Field of View Pupil Diameter
3x 100 mm 44.1 mm 23.5 mm
4x 100 mm 35.7 mm 23.6 mm
6x 68 mm 24.2 mm 22.4 mm
8x 60 mm 18 mm 19.4 mm
10x 54 mm 14.2 mm 17.0 mm
15x 40 mm 9.1 mm 12.3 mm
6x SLWD  114 mm 22.5 mm 17.0 mm
8x SLWD 113 mm 17.9 mm 14.4 mm

Mantis IOTA

Objective Lens Working Distance Max. Field of View Pupil Diameter
3x 104 mm 37.0 mm 22.8 mm
4x  108 mm 29.0 mm 23.6 mm
6x  74 mm 20.1 mm 18.0 mm
8x 61 mm 15.0 mm 18.0 mm
Mantis PIXO Mantis ERGO Mantis IOTA

Incident options

Brightness 21 k lux max. 26 k lux max.
Colour temperature 5500K at max brightness
Control 25 Steps

Transmitted (Stabila illuminated base)

Brightness 38 k lux max.
Colour temperature ∼ 48000K
Control 25 Steps

UV version

Brightness 0.47 k lux 53uW/cm2 max. 26 k lux max.
Colour temp/ peak wave length 385 nm
Control 25 Steps
Mantis PIXO (only)
Camera resolution 5.04 Mp
Best capture resolution 2592 x 1944 pixels
Frame refresh rate Max. 48 frames per second
Sensor type Rear-illuminated CMOS
Colour depth 12-bit
Interface USB 3.0
Output connection USB C to PC
File capture formats BMP, JPG, PNG, AVI
Save image sizes
  • PNG – 19 MB
  • BMP -19 MB
  • JPG -400 KB
Stand Image

Stabila stand

Counter sprung for ease of use, Stabila’s compact, stable design features long range of focus travel and an optional illuminated base.

Dimensions:

  • Focus travel – 150 mm
  • Throat depth – 218 mm
  • Max. subject height – 146 mm

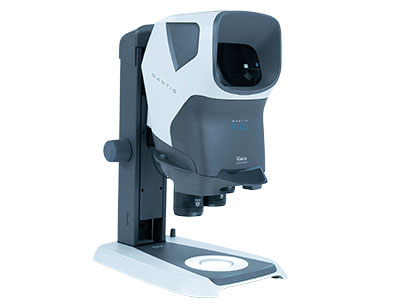

Mantis PIXO Stabila stand facing right 300x224 tiny 1

Pilot stage for Stabila stand

100mm x 100mm travel stage with autolock to prevent unwanted movement.

Mantis PIXO on Stabila stand with Pilot stage

Verso stand

Versatile lift and lower Verso stand enables any Mantis to be swung in and out of position when needed.

Dimensions:

  • Focus travel – 230 mm
  • Throat depth – 380 – 505 mm
  • Max. subject height – 166 mm
Mantis ERGO stereo microscope on Verso stand

Verso stand extension

Adds extra stand reach with pivot point, rotation 270°.

Dimensions:

  • Throat depth – 630 – 755 mm
  • Max. subject height – +10 mm

Mantis PIXO stereo microscope on verso stand with extension

Software Options (Mantis PIXO only)
ViCapture Image and video capture (supplied).
DimensionOne Image capture, annotation, on-screen measurement.
DimensionTwo Image capture, annotation, on-screen measurement, camera control.
Vifox Image capture, analysis, enhancement, annotation, on-screen measurement, camera control, reporting.
ViPlus Image capture, annotation, on-screen measurement, camera control, reporting.
  • Standard power 100V-240V, 50/60Hz, available in all worldwide plug configurations.
  • Pilot Stage (Stabila stand): For smooth and precise control. 100mm x 100mm travel stage with Auto lock to prevent unwanted movement.
  • Contrast Enhancing Base: To optimise lighting for a variety of transparent and translucent samples, enhancing the observed contrast. (Brochure PDF)
  • Tilting Base:  For changing the position and angle of the subject without touching it.
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider

Mantis

THE stereo microscope trusted by thousands of customers globally to deliver excellent high quality images for a wide range of applications in an easy to use ergonomic package.

Frequently asked questions

Below you can find some of the most common questions.

Can Mantis IOTA lenses be interchanged?2023-06-19T08:49:39+00:00

Yes, Mantis IOTA microscope lenses have a bayonet style fit and can be easily changed by the user.

What is Mantis PIXO camera performance?2023-06-19T09:20:39+00:00

Mantis PIXO uses a 5MP back-illuminated sensor with super speed USB-C cable for data transfer. Please note: Quality of cables affects performance of the system, so use the cables supplied.

What objective lenses do I require?2023-06-19T09:21:12+00:00

The choice of microscope objective lenses will depend on the application and on user preference. In general, when viewing or inspecting objects, it is advantageous to see more of the sample (i.e. have a larger field of view) and have a large depth of focus. Depending on the size of the subject, these requirements may indicate that the lower magnification (4x and 6x) lenses will be the most useful for inspection work and the higher magnification (≥8x) lenses more useful when more detailed work is required.

What is the compatibility between parts from the Mantis classic and the new Mantis range?2023-06-19T09:21:50+00:00

The new Mantis 3rd generation family (PIXO, ERGO and IOTA) is a huge step forwards from Mantis classic (Elite Cam HD, Elite and Compact) and has been completely redesigned to deliver wide ranging benefits over Mantis classic. Most Mantis classics parts and accessories are not compatible.

Can I still get servicing and parts for Mantis Elite, Elite Cam-HD and Compact?2023-06-19T08:26:04+00:00

Yes. These models are part of the Mantis Classic range . We will continue to offer the same high level of after sales support, ensuring the availability of current accessories and spare parts for the foreseeable future.

For more frequently asked questions please visit the our support page.

Mantis Compact stereo microscope on bench stand

Mantis PIXO logo

Ergonomic stereo microscope with digital camera for image capture. Switchable 3 lens turret. Dynamic 3D lighting with white/UV options.

Mantis Elite Cam HD stereo microscope with monitor

Mantis ERGO logo

Ergonomic stereo microscope with switchable 3 lens turret. Dynamic 3D lighting with white/UV options.

Mantis Elite stereo microscope with boom arm

Manits IOTA logo

Compact ergonomic stereo microscope. Easy to use with interchangeable lenses.

The previous generation of Mantis (Elite, Elite-Cam- HD, Compact) has now rebranded as Mantis Classic.
