Robust, high quality microscopes for every application.

Whether you want a robust, high quality stereo microscope for a particular application, or you want to standardise on a single range with several models to choose from, Vision Engineering’s SX FAMILY  of stereo microscopes should be at the top of your list.

02-Swift-PRO-measuring-microscope-user-AB V19 495

Exquisite detail

From the entry level Greenough SX25 Elite right through to the CMO (common main objective) SX100 model, a Vision Engineering SX stereo microscope will let you see the subject with exceptional clarity and the detail you need.

Improved depth perception

Our stereo microscopes give you a real feel for depths of surfaces, making it easy and natural to work with tools for assembling, fixing, inspecting or interacting with the subject.

07-Swift_PRO_measuring-microscope-range_300dpi

4 – 320x

Magnification

High

Resolution

HD

Image Capture

Highly configurable

Whatever your application or environment, you can configure a Vison Engineering SX microscope to fit your exact needs with a range of high quality options.  A choice of eyepieces, objective lenses, accessories and stands let you configure a microscope that’s exactly right for you.

Easy image capture

Ideal for a range of requirements, our easy image captures support all of your sharing, reporting, training, archiving, compliance, and third party communications

One range. Two families. Exceptional choice.

SX Elite is a family of three Greenough microscopes offering magnifications of 190x up to 200x – and working distances of up to 220mm –  ideally suited for inspection, assembly and reworking tasks.  SX80 CMO and SX100 CMO (common main objective) binocular stereo microscopes, and offer a greater zoom range, higher magnifications and modular construction for more versatile configurations.

Technical

SX25 Elite SX45 Elite SX45 Elite TR SX80 SX100
Zoom ratio 4.5x 6.3x 6.3x 8x 10x
Standard mag. range 10x – 45x 8x – 50x 8x – 50x 8x – 64x 8x – 80x
Lowest/highest mag. 5x – 180x 4x – 200x 4x – 200x 4x – 256x 4x – 320x
Working distance up to 180mm up to 220mm up to 220mm up to 130mm up to 130mm
Camera option x x
  • Bench Stand
  • Single Arm Boom with Base
  • Double Arm Boom with Base
  • Double Arm Boom with Clamp
  • Articulated Arm Boom with Clamp
  • Bench stand includes: incident illumination (overhead, angled) and sub-stage illumination.
  • 64 LED Ring Light
  • 64 LED Quadrant Ring Light
  • 144 LED Quadrant Ring Light
  • White-UV Ring Light
Camera (Optional )
Sensor type CMOS
Resolution 2560 x1920 pixels
Sensor size 1/2″
Interface USB 2.0 and USB3
File formats BMP, JPG, PNG, AVI
Supplied software ViCapture
Software Options
ViCapture Image and video capture (supplied with camera).
DimensionOne Image capture, annotation, on-screen measurement.
DimensionTwo Image capture, annotation, on-screen measurement, camera control.
VifoxEVO Image capture, analysis, enhancement, annotation, on-screen measurement, camera control, reporting.
ViPlus Image capture, annotation, on-screen measurement, camera control, reporting.
  • Standard power 100V-240V, 50/60Hz, available in all worldwide plug configurations.
  • Floating Stage For use with Bench Stand.
  • Measuring graticule
vision
vision
vision
vision
vision
vision
vision
vision

SX Series

Robust, high quality microscopes for every application

Book a Demo
Request Pricing

Frequently asked questions

Below you can find some of the most common questions.

Are Graticules available for the SX series?2020-07-13T04:09:39+00:00
Yes. Please contact your Vision Engineering representative for details on the available graticules
Can I fit a camera to the SX series microscopes?2020-07-13T04:10:16+00:00
The SX45-TR Elite is designed with an extra optical path to allow a camera to be fitted for display and image capture. A selection of Vision Engineering cameras and software are available for viewing, capture, reporting and other.
What is the magnification of the SX series.2020-07-13T04:09:02+00:00
The magnification of the SX series depends on the configurationof the system. The available magnification is a factor of the objective, the internal optics and the selected eyepieces. The maximum magnification for each of the SX series models is: SX25 Elite = 5x – 180x, SX45 Elite = 4x – 200x, SX80 = 4x – 256x, SX100 = 4x – 320x

For more frequently asked questions please visit the our support page.

Ask us a question

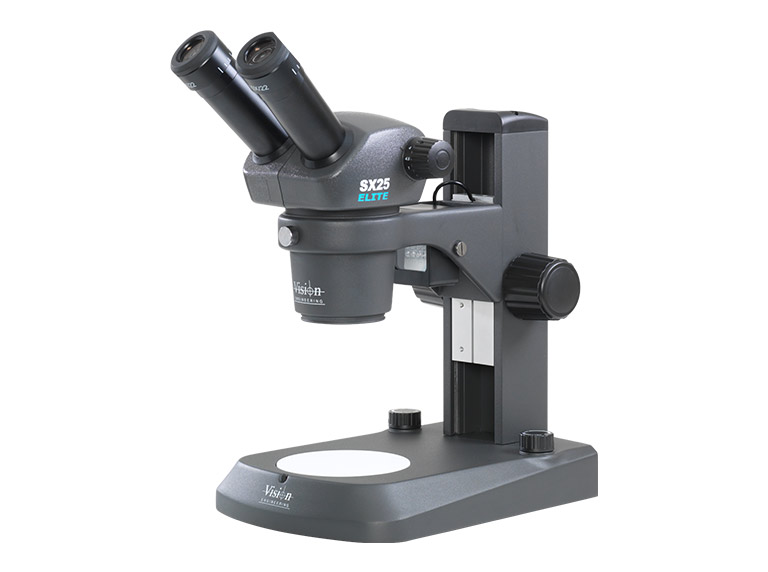

SX25 Elite

  • A compact zoom stereo binocular microscope
  • 4.5:1 zoom with magnification up to 180x
  • Ideal for simple inspection, assembly and rework tasks
Request a Demo

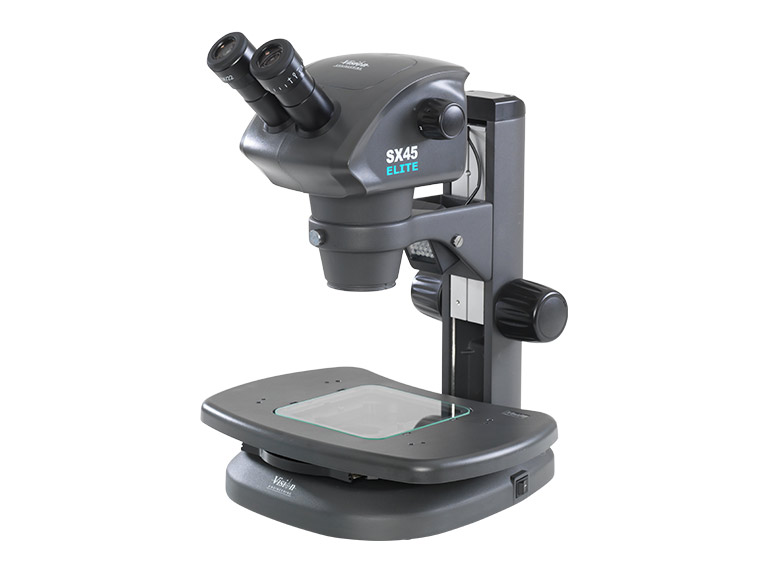

SX45 Elite

  • Extra-long working distance compact zoom stereo binocular microscope
  • 6.25:1 zoom with magnification up to 200x
  • Working distance up to 220mm
Request a Demo

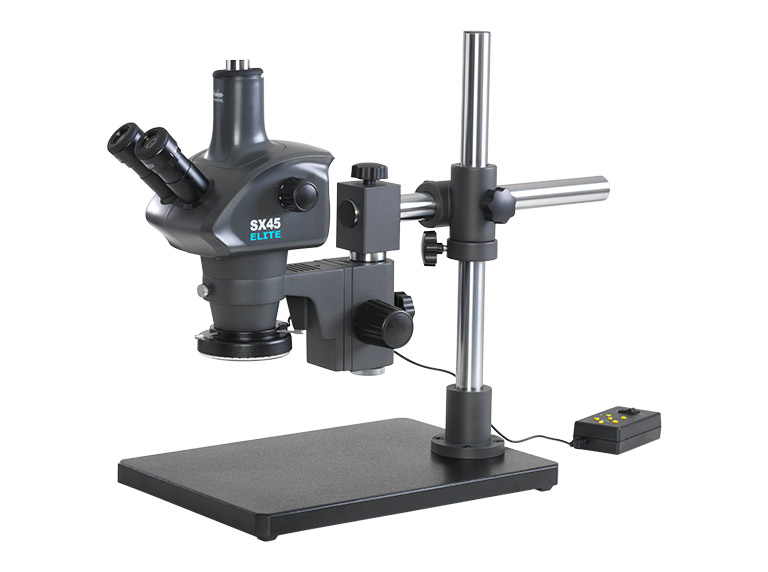

SX45-TR Elite trinocular stereo microscope

SX45-TR Elite

  • Integrated optics to allow cameras to be fitted.
  • Ideal for general inspection and rework tasks
  • Image capture for display, training and reporting
Request a Demo
SX-Elite-stereo-microscopes-configuration-4-image-SX80-180X262px

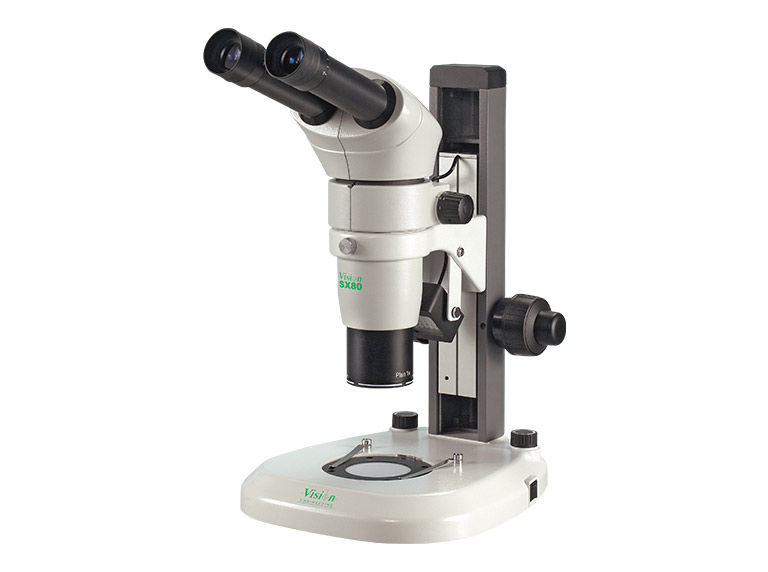

SX80

  • High resolution stereo binocular microscope
  • 8:1 zoom range with magnification up to 256x
  • Modular design including tilting head and camera arm
Request a Demo

SX100

  • High resolution stereo binocular microscope
  • 10:1 zoom range with magnification up to 320x
  • Modular design including tilting head and camera arm
Request a Demo
