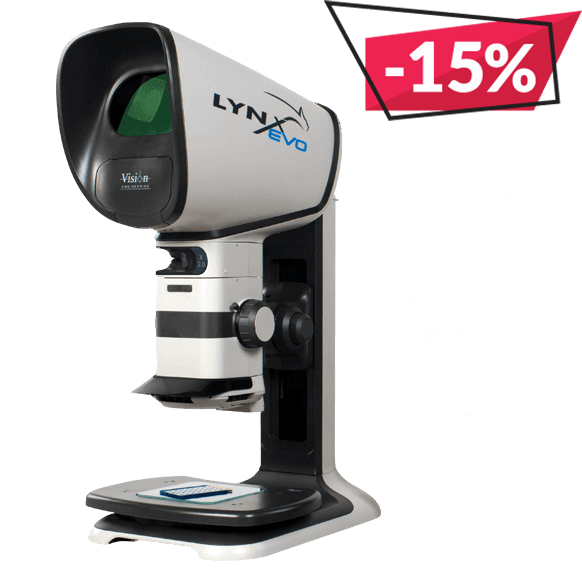

Work better, for longer

The Lynx EVO stereo microscope was designed to increase productivity through superior ergonomics. Whatever your challenge – inspection, production, reworking, or anything else requiring magnification – 3D depth perception and bright, high resolution, high contrast images lets you work comfortably and with greater concentration. Magnifications from 2.7x to 240x make it ideal for a wide range of applications.

Lynx EVO stereo zoom microscope allows peripheral vision

Greater efficiency

Providing enhanced hand-to-eye coordination, more working space for tools and better peripheral vision for easy interaction with the your working environment, Lynx EVO transforms the way you work. And with no eyepieces to adjust, it’s easy to share between multiple users, increasing productivity and ensuring maximum return on your investment.

Dynascope technology for superior imaging

Dynascope has redefined the science of microscopy, overcoming the physical limitations of conventional microscopes to help laboratories and workshops improve quality and productivity. At its heart there is a multi-lenticular disc which incorporates more than 3.5 million individual lenses or ‘lenticules’, each just a few microns in diameter.  The multi‐lenticular disk spins at high speed to merge the millions of individual optical paths into a high‐clarity, high contrast image.

Lynx EVO stereo zoom microscope

2.7 – 240x

Magnification

Easy

Viewing

HD

Image Capture

Exceptional ease of use

Lynx EVO is extremely easy to use. There are no eyepieces to set up for different users, and focusing and illumination is controlled with simple dials. Dual iris control is managed with a single slide mechanism.

stereo microscope user with mask and safety glasses using Lynx EVO

Health and productivity

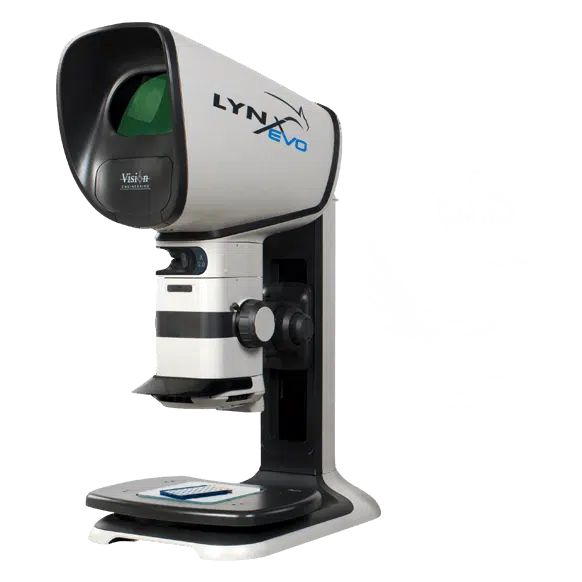

The award-winning Lynx EVO delivers substantial benefits over traditional binocular microscopes, including the ability to wear prescription or safety glasses, superior imaging with less eyestrain, freedom of head movement, better posture, and dramatically improved operator comfort even during longer sessions.  It all adds up to greater productivity, faster throughput, improved hand-eye co-ordination and fewer errors.

Lynx EVO Ergo System

Highly stable for working with fine detail at magnifications of up to 240x, with illumination from above and below for working with opaque, translucent or perforated subjects.

Lynx EVO with floating stage

Lynx EVO angled view configuration

Providing an angled view of the subject, with lift and lower, slide, and rotational movements, this configuration is ideal for the inspection and reworking, with generous space for working with tools.

Lynx EVO with EVOTIS

EVOTIS is an advanced inspection workstation for large area subjects such as PCBs and multi-layer components, enabling quick, efficient inspection of fine detail.

EVOTIS PCB inspection station
01-Lynx-EVO-zoom-stereo-microscope-768x572px

Options for any challenge

A choice of fixed or zoom magnification configurations and a range of useful accessories lets you configure Lynx EVO to your precise and individual needs.

Rotating viewer

A 360° rotating viewer lets the operator look in and around the subject without touching it, by manipulating the optical path.

Lynx EVO 360° rotating viewer
Lynx EVO microscope inside laminar flow cabinet with user

Choice of stands

A variety of ergonomic stands makes Lynx EVO suited to any industrial or life science application.

Still and video cameras

Lynx EVO can be equipped with still and video cameras, and ViCapture software, for image capture enhanced with annotation capabilities and other productivity features.

Lynx EVO microscope with digital camera
Lynx EVO microscope displaying PCB on monitor

Software

A range of software for image capture, annotation, dimensioning and reporting is available.

Technical

Zoom Ratio – 10x

Objective Lenses Magnification range Working Distance (mm) Max Field of View (mm)
0.45x 2.7x – 27x 176 55
0.62x 3.7x – 37x 128 40
1.0x 6x – 60x 75 25
1.5x 9x – 90x 42 16
2.0x 12x – 120x 29 12

Zoom Ratio – 15x With 1.5 Multiplier

Objective Lenses Magnification range Working Distance (mm) Max Field of View (mm)
0.45x 2.7x – 40x 176 55
0.62x 3.7x – 55x 128 40
1.0x 6x – 90x 75 25
1.5x 9x – 135x 42 16
2.0x 12x – 180x 29 12

Zoom Ratio – 20x With 2.0 Multiplier

Objective Lenses Magnification range Working Distance (mm) Max Field of View (mm)
0.45x 2.7x – 54x 176 55
0.62x 3.7x – 74x 128 40
1.0x 6x – 120x 75 25
1.5x 9x – 180x 42 16
2.0x 12x – 240x 29 12

With 360° Optical Viewer

Viewer Setting Rotating View Direct View
Magnification range 4.2x – 42x 6.8x – 68x
with
1.5 Multiplier
4.2x – 63x 6.8x – 102x
with
2.0 Multiplier
4.2x – 84x 6.8x – 136x
Working Distance 35.5mm 56.5mm
Max Field of View 10.2mm 12mm
Viewing Angle 34° N/A

FIXED magnification configuration

Objective Lenses Magnification Working Distance Max Field of View)
0.45x 8.5x 175 mm 17.5 mm
0.5x 10x 159 mm 15.3 mm
0.62x 12x 125 mm 12.9 mm
1.0x 20x 75 mm 7.65 mm
1.5x 30x 42 mm 5.1 mm
2.0x 40x 29 mm 3.82 mm

FIXED magnification configuration (with 1.5x Multiplier)

Objective Lenses Magnification Working Distance Max Field of View)
0.45x 8.5x 175 mm 11.65 mm
0.5x 10x 159 mm 10.2 mm
0.62x 12x 125 mm 8.6 mm
1.0x 20x 75 mm 5.1 mm
1.5x 30x 42 mm 3.4 mm
2.0x 40x 29 mm 2.55 mm

FIXED magnification configuration (with 2x Multiplier)

Objective Lenses Magnification Working Distance Max Field of View)
0.45x 8.5x 175 mm 8.9 mm
0.5x 10x 159 mm 7.65 mm
0.62x 12x 125 mm 6.4 mm
1.0x 20x 75 mm  3.82 mm
1.5x 30x 42 mm 2.6 mm
2.0x 40x 29 mm 1.91 mm
Stand Options
Ergo stand Lynx EVO zoom stereo microscope on Ergo stand with sub-stage illuminationSmall footprint, high stability for high magnification use. Optional substage illumination. Floating stage can be fitted.
Multi-Axis stand Lynx EVO stereo microscope on Multi-axis standPrecise and robust. Ideal for industrial application where maximum work space is required. Counterbalanced for quick, effortless, adjustability. Available with direct mounting to work surface or platform base (sub-stage base option is also available).

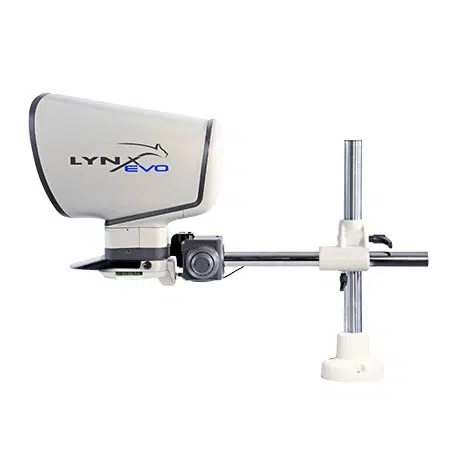

Boom stand Lynx EVO fixed magnification stereo microscope on single arm boom stand with clamp.Only compatible with the fixed magnification configuration. Use with desk clamp or desk bolt.
Smart CAM 50
Sensor type CMOS
Resolution (H x W) 2592 x 1944 pixels
Sensor size 1/2.5″
File formats BMP, JPG, PNG, AVI
Supplied software ViCapture
Software Options
ViCapture Image and video capture (supplied with camera).
DimensionOne Image capture, annotation, on-screen measurement.
DimensionTwo Image capture, annotation, on-screen measurement, camera control.
VifoxEVO Image capture, analysis, enhancement, annotation, on-screen measurement, camera control, reporting.
ViPlus Image capture, annotation, on-screen measurement, camera control, reporting.
  • Standard power 100V-240V, 50/60Hz, available in all worldwide plug configurations.
  • Floating stage: For use with Ergo Stand
  • Graticule
  • Measuring scales
  • Fixed wedge: To tilt head upwards (25°) or downwards (25°)
  • Contrast Enhancing Base: To optimise lighting for a variety of transparent and translucent samples, enhancing the observed contrast. (Brochure PDF)
  • EVO Elevate:  To optimise height adjustment without compromising great ergonomics (EVO Elevate Datasheet PDF)
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider

Lynx EVO

Work better, for longer

Frequently asked questions

Below you can find some of the most common questions.

How does Lynx EVO work?2020-06-29T15:52:09+00:00

Lynx EVO utilises patented dynascope technology to project stereo images into the users eyes.

Can I wear my glasses with Lynx EVO?2020-06-29T15:53:25+00:00

Yes. The optical design of the Lynx EVO head projects the image into the users eyes. If the user wears task specific eye glasses these can be worn to correct the users sight without affecting the performance of the Lynx EVO. In the same way safety glasses and can also be worn during use.

How can I ensure that I return to a specific magnification after zooming?2024-09-09T11:21:46+00:00

Lynx EVO includes a detent which can be set at any point within the zoom range. The detent works as a physical marker that if felt as the zoom control moves past it. Like a click stop, the detent causes the zoom to click into the set magnification before the user can zoom past in either direction ensuring the user returns to the same place time and again. Fixed magnification configurations offers set magnifications (refer to Technical specifications). Fixed magnification configuration offers set magnifications (refer to Technical specifications).

Can I measure with Lynx EVO?2020-06-29T15:55:39+00:00

Yes. it is possible to get measurements using Lynx EVO in the same way as can be achieved with other stereo microscopes. These are typically; via the use of a graticule or via the use of the optional camera module and measurement software

For more frequently asked questions please visit the our support page.

Lynx-EVO-stereo-microscope-Banner-582x582px (1)

Lynx EVO Base System

  • High stability, small footprint stand
  • Ideal for high magnification use (up to 240x)
  • Sub-stage illumination option, coarse and fine focus
Lynx EVO ergonomic stereo microscope with angle view of subject

Lynx EVO Angled View Configuration

  • For an angled view of the subject
  • With height, slide and rotational adjustments
  • Ideal for inspection & with generous space for reworking
EVOTIS-Lynx-EVO-electronics-prototyping-hand-assembly-rework-768x572px
  • Advanced inspection workstation
  • For large area subjects e.g. PCBs, and multi-layer components
  • Quick and efficient inspection of fine detail
