Methodical inspection of critical PCBs

If you’re inspecting safety-critical or mission-critical PCBs or palletised components, you need EVOTIS, with Lynx EVO or EVO Cam II. Available in 3D and 2D configurations, EVOTIS comes with an independently lockable X-Y stage for methodical inspection along rows of features, which means that you can be confident that you’ve examined the fine detail of every single feature. Use EVOTIS with the 360° viewer and you’ll see even more, just as easily.

EVOTIS Swift-PRO measuring microscope

See everything, easily

Using EVOTIS with our 360° viewer removes the need to manipulate large samples: something which rapidly becomes more difficult as the magnification increases. Instead of moving the subject, the 360° viewer gives you a rotating, oblique view at 340, right around a feature as well as the normal direct down view.

2D and 3D solutions

Some subjects require a 3D view for a proper understanding of the subject.  EVOTIS meets all of your needs, with configurations for 2D camera-based inspections or 3D stereo inspections.  A variety of easy to use software solutions makes measurement, quantification and reporting easy.

EVOTIS Technical Inspection System showing PCB component connectors on monitor

3 – 756x

Magnification

Large

Component Inspection

PC

Control Option

Inspection of fluorescing coatings

UV inspection of conformal coatings or fluorescing dye crack penetrants is easily achieved by combining EVOTIS with EVO Cam II and the UV illuminator.  Detailed inspection of thinning, pooling and contamination is also made easier.

EVOTIS close up of illumination contact lens checker
EVOTIS Lynx EVO PCB inspection

EVOTIS with Lynx EVO and 360° rotating viewer

3D stereo view of large, difficult to handle, critical components

See every detail from every angle efficiently and controllably

3D image capture and recall

EVOTIS with Lynx EVO and SmartCam

3D view with 2D image capture and connectivity

Interface with measurement and analysis software without compromising on the 3D view

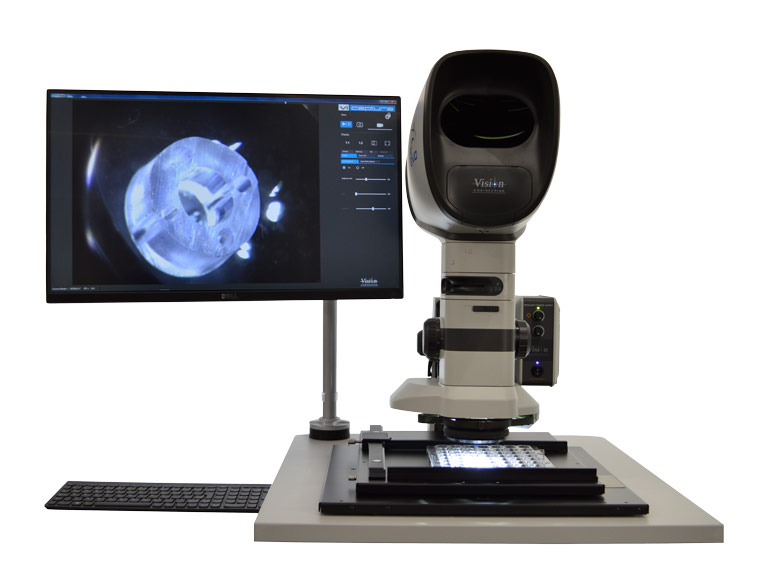

EVOTIS Lynx EVO microscope with monitor
EVOTIS microscope inspection of fluroescing coatings

EVOTIS with EVO Cam II and UV illumination

Easy switchable white and UV light inspection of conformal coatings

Capture and share images with customers, colleagues and suppliers quickly and easily

Technical

with Lynx EVO stereo microscope with EVO Cam II digital microscope
Optical System Eyepiece-less stereo viewer (3D) High resolution digital microscope
Zoom Ratio 10x, 15x or 20x 30x
Magnification range (0.62x, 1.0x, 1.5x & 2.0x objectives with 24″ monitor) 2.7 – 240x 3.1 – 300x
Magnification range (5.0x & 10.0x objectives with 24″ monitor) n/a 250 – 756x
Objectives Compatible with Lynx EVO objectives Compatible with EVO Cam II objectives
objective Max. component height (mm)
0.62x 47 37
1.0x 98 74
1.5x 106 82
2.0x 119 96
5.0x n/a 118
10.0x n/a 118
360° rotating
viewer
39 39
Image Capture With Lynx EVO SmartCam or SmartCam 5 camera options with standard on-board controls or with PC connection using Windows software
On-board camera firmware includes tools for using overlays, grids, cursors, on-screen measurement. Focus Stacking is optionally available.
When connected to a PC, there are several options:
ViCapture – Image and video capture.
DimensionOne – Image capture, annotation, on-screen measurement.
DimensionTwo – Image capture, annotation, on-screen measurement, camera control.
ViPlus – Image capture, analysis, enhancement, annotation, on-screen measurement, camera control, reporting.
VifoxEVO – Image capture, annotation, on-screen measurement, camera control, reporting.
High capacity static-free scanning stages. Stage can be locked: X-axis, Y-axis or both.
Max. subject size (mm) Footprint (mm)
Compact 300 x 250 646 x 668
Standard 300 x 250 806 x 743
Large 460 x 460 1108 x 905
Standard power 100V-240V, 50/60Hz, available in all worldwide plug configurations.
Stand-off kits. To hold the PCB either 28mm or 50mm of the stage.
