Fully automated 3-axis measurement systems

Extraordinarily capable, but surprisingly easy to use, Vision Engineering’s LVC400 and LVC200 fully automated 3-axis measuring systems have the power and versatility to meet the needs of demanding manufacturing environments. With a measurement range of up to 400mm x 300mm x 200mm, they are ideal for measuring large components or, just as easily, batches of small components.

02-LVC400-cnc-video-measurement-AB-V19-431-900x900

Rapid, cost-efficient measurements

A motorised measuring stage and motorised zoom lens work together to automate the movement of the system, reducing measurement time and operator discomfort. Not only that, but the multi-position motorised zoom lens allows changes to the magnification to be part of measurement program, eliminating the need for time-consuming manual changes.

Range of applications

Thanks to its rich suite of functionality and incredible value, the LVC-Series is the ideal measurement solution for a wide range of applications including precision engineering, casting, plastic moulding, electronics and medical devices manufacture.

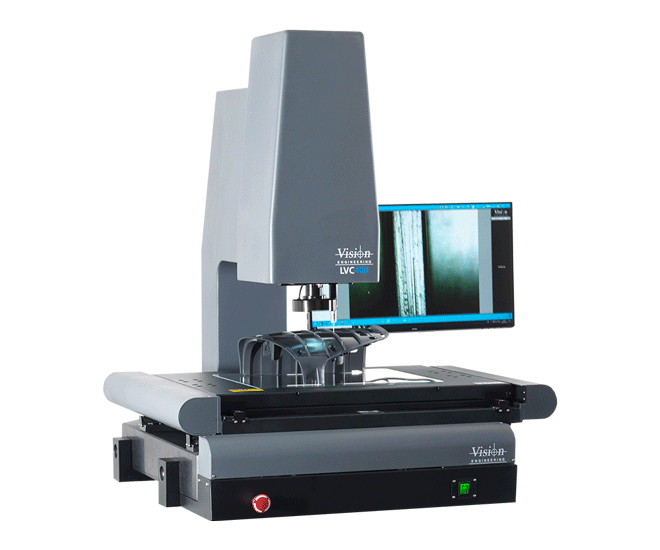

LVC400 CNC metrology system with touch probe

Up to 400 mm x 300 mm

measurement range

Touch probe

compatible

Full CNC

control in 3 axes

Contact measurement for complex parts

Optional touch probes make is easy to measure complex features and 3D forms and there’s a probe module changing rack for storing and automatically changing multiple probe modules.

Large and multiple small components.

A large (400 mm x 300 mm) stage makes the LVC400 ideal for measuring large components, but it can also be used to speed up the measurement of multiple smaller components by using the palletising feature.  Simply load the small components onto the stage and measure the whole lot in one program, saving valuable time.

Intuitive metrology software

The LVC range comes with our highly intuitive and user-friendly M-Series software for advanced functionality and comprehensive reporting capabilities.  Highlights include feature measurements and constructions with geometric tolerancing, programmable illumination, DXF import/export and digital overlays, advanced edge detection, simple SPC and direct data transfer to Excel.  All this, plus stitching and pallet programs, a multi-feature finder tool, a thread measurement option and formula results via a calculation feature.

Technical

LVC400 LVC200
LVB002 LVB003 LVB010 LVB005 LVB007 LVB009
400mm x 300mm x 200mm  (16″ x 12″ x 8″) 200mm x 150mm x 200mm (8″ x 6″ x 8″)
LVC400 LVC200
LVB002 LVB003 LVB010 LVB005 LVB007 LVB009
7-position motorized zoom Yes Yes Yes Yes
10-position motorized zoom Yes Yes
LVC400 LVC200
LVB002 LVB003 LVB010 LVB005 LVB007 LVB009
USB3 Color Camera
LVC400 LVC200
LVB002 LVB003 LVB010 LVB005 LVB007 LVB009
25 kg (55 lbs)
LVC400 LVC200
LVB002 LVB003 LVB010 LVB005 LVB007 LVB009
789mm x 915mm x 1087mm (31″ x 36″ x 43″) 536mm x 705mm x 1096mm (21″ x 28″ x 43″)
LVC400 LVC200
LVB002 LVB003 LVB010 LVB005 LVB007 LVB009
350 kg (772 lbs) 180 kg (397 lbs)
LVC400 LVC200
LVB002 LVB003 LVB010 LVB005 LVB007 LVB009
Granite Cast aluminium
LVC400 LVC200
LVB002 LVB003 LVB010 LVB005 LVB007 LVB009
Yes Yes
LVC400 LVC200
LVB002 LVB003 LVB010 LVB005 LVB007 LVB009
Yes
LVC400 LVC200
LVB002 LVB003 LVB010 LVB005 LVB007 LVB009
2.8 + (8L/1000) μm * 2.8 + (8L/1000) μm *

* L = length in mm, using controlled conditions.

LVC400 LVC200
LVB002 LVB003 LVB010 LVB005 LVB007 LVB009
3 + (10L/1000) μm * 3 + (10L/1000) μm *

* with optional touch probe.

LVC400 LVC200
LVB002 LVB003 LVB010 LVB005 LVB007 LVB009
0.1 μm 0.1 μm
Field of View LVC400 LVC200
LVB002 LVB003 LVB010 LVB005 LVB007 LVB009
Min Magnification (X x Y) 12.5mm x 7.9mm 18mm x 11.4mm 10.6mm x 7.7mm 12.5mm x 7.9mm 18mm x 11.4mm 10.6mm x 7.7mm
Max Magnification (X x Y) 2.9mm x 1.8mm 1.8mm x 1.1mm 2.8mm x 1.8mm 2.9mm x 1.8mm 1.8mm x 1.1mm 2.8mm x 1.8mm
Illumination LVC400 LVC200
LVB002 LVB003 LVB010 LVB005 LVB007 LVB009
Quadrant LED Ring Light Yes
High Parallelism Flat Back Light Yes Yes Yes Yes
Collimated LED Back Light Yes Yes
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider
vision product slider

LVC Series

Fully automated 3-axis measurement systems

Frequently asked questions

Below you can find some of the most common questions.

Can I export measurement results into MS Excel?2020-06-19T10:31:05+00:00

Yes, all measurement data can be exported into an open Excel file instantly, or saved in a specific location for reviewing later.

Can I use both video and touch probe for measuring different features of the same part?2020-06-19T10:31:28+00:00

Yes, you can combine video (non-contact) and touch probe (contact) measurements in the same measurement routine. With the optional probe rack, the LVC will automatically pick up the right probe when contact measurement is needed and safely park it when finished.

How easy is programming the machine to do specific measurements on the shop floor? Does it require a metrology specialist?2020-06-19T10:30:52+00:00

Our M-series measurement software is as intuitive as possible whilst maintaining advanced functionality. Once a first off measurement is done, the operator can save the measurement steps, which becomes the “program” for measuring the same part again in the future. No special programming is required. Just measure the part once and save.

What is the maximum magnification of the LVC range?2021-01-28T12:35:58+00:00

This depends on the size of the monitor. The maximum magnification on standard LVC machines with a 25” monitor is 370x, whilst LVC+ models could go up to 700x.

For more frequently asked questions please visit the our support page.
