Lightpad
Compact substage illumination
Uniform high-intensity light

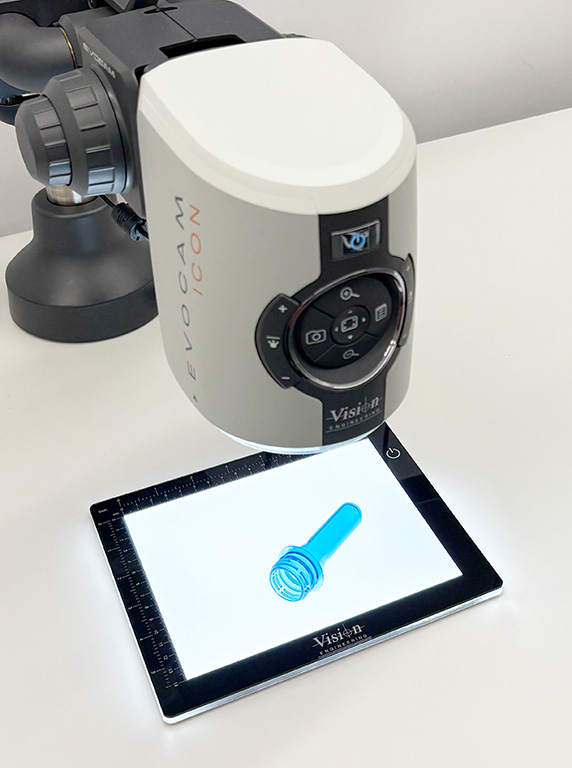

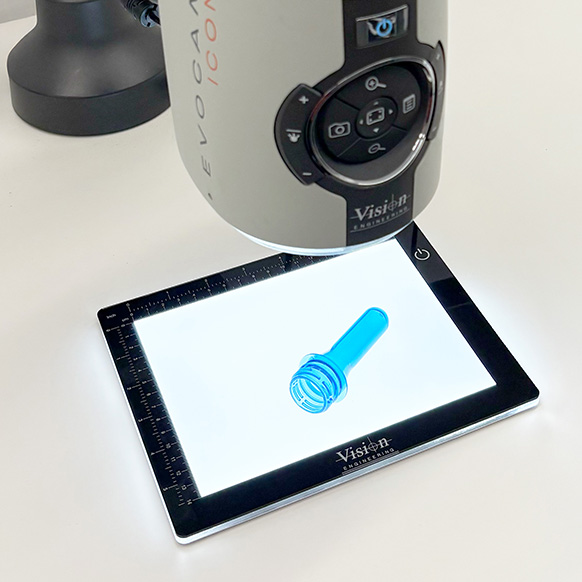

Vision Engineering’s Lightpad is a compact, precision substage lighting unit. It is designed to deliver clear, uniform backlighting for a wide range of inspection and imaging tasks.
Lightpad is compatible with the full Vision Engineering range and works especially well with the EVO Cam series. It provides high-intensity LED lighting without generating excess heat, making it suitable for extended use in production, inspection, laboratory, or training environments.
A single button controls the brightness, with a memory function that saves your last setting. An integrated ruler adds a useful visual reference for quick measurements.
Key features
- Uniform high-intensity LED light
- Low heat output and long lifespan
- Single-button brightness control
- Retains last brightness setting
- Built-in measurement ruler
Technical
| Light source | LED | Size | 22 cm x 18 cm x0.8 cm |
| Brightness level | Continuous | Illumination area | 18 cm x 14 cm |
| Brightness at surface | 13 000 Lux | Weight | 0.8 kg |
| Colour temperature | 6000K | Cable length | 1.8 m |
| Energy consumption | 6.5 Watts | Power supply | Universal 12v adapter |
